Transfer stations

The AVERMANN-HORVÁTH waste transfer stations serve for transloading the collected waste materials. In situations where the waste collected has to be transported over long distances, it is practicable to compact the material in order to reduce the specific costs of transportation to the smallest extent possible. Our company is takes major part in this region with over 40 transfer stations. It is possible to empty a 16 m³ truck in 8 minutes.

We differ open and closed type, and three, four, five and six trolleys transfer stations. Open type transfer station includes open top containers, an electronically moved rail system, a hopper, and a control unit. Here is no option to compact the collected waste material, only to collect it in different fractions.



Parts of the closed waste transfer station:

It is possible to fit the machines in a closed place, or to produce a roof, that prevents the materials against wind and the environment against dust.

Open and closed transfer station in Szigetszentmiklós (Hungary)

SP - 18 transfer station with 5 trolleys and roof (Nagyatád, Hungary)



Optional equipment:

Roof above the hopper

Trolleys in parallel and transverse section

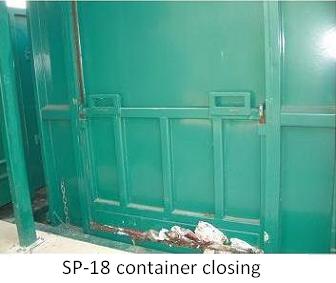

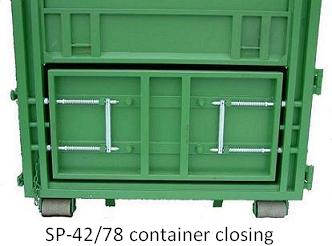

Automatic container filling door closing (2 types, with special containers)









SP-18

SP-42

SP-78

Machine length

5.970 mm

6.250 mm

9.850 mm

Machine width

2.750 mm

2.680 mm

2.650 mm

Machine height

2.600 mm

2.550 mm

2.550 mm

Dead weight

5.200 kg

 14.100 kg

 22.000 kg

Motor power output

18,5 kW

22 - 55 kW

22 - 55 kW

Hydraulic oil needs

400 l

400 - 630 l

630 - 800 l

Output in one cycle

1,8 m3

4,2 m³

7,8 m³

Effective duration of compacting

 36 sec

18 - 53 sec

24 - 62 sec

Compacting pressure

200 bar

200 bar

250 bar

Force of compaction

380 kN

402 - 800 kN

402 - 800 kN

Capacity / hour

180 m³

286 - 840 m³

452 - 1.170 m³

Power supply

3 x 400 V/50 Hz

Fuse protection on site

63 A, slow

63 - 120 A, slow

63 - 120 A, slow

Externally mounted plug

CEE-5 x 32 A/6 h

Compacting ratio

1:5

Transport

Multilift trucks
